Odorizzi - B5 Relational Database Theory

Relational Database theory was developed by E.F. Codd, detailed in his first publication in 1969. The simplest and most generic definition of relational databases that I found is as follows: “A persistent storage mechanism that enables you to both store data and optionally implement functionality.”

I am going to organize this post the way I approached my reading - by gradually building my understanding of what a database is, the terminology associated with a database, and how a relational database layers a large degree of functionality.

I started by gaining a sense of what is a database? A major source of the information I’m going to talk about came from an online textbook, “An Introduction to a Relational Database Theory” by Hugh Darwin (2010). Darwin defines a database as “an organized, machine-readable collection of symbols, to be interpreted as a true account of some enterprise. A database is machine-updatable too, and so must also be a collection of variables.” The symbols that Darwin refers to is what we would typically think of as data, which is classified by attributes that describe the data - which is how I interpret his statement about “a true account of some enterprise”

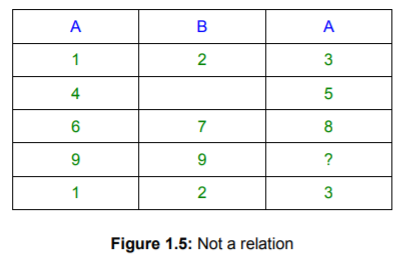

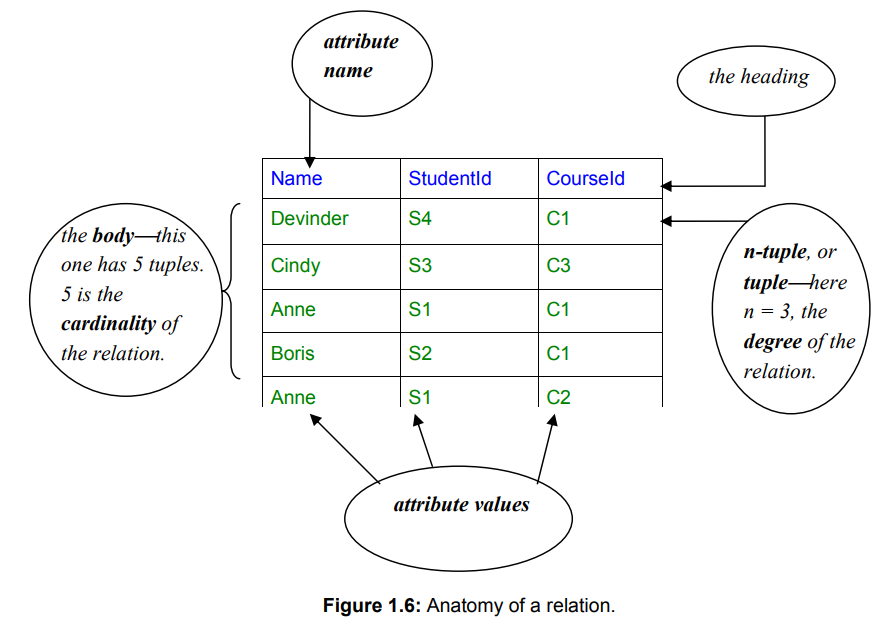

With regard to relational databases, I learned that an important distinction to clarify is the difference between a ‘table’ and a ‘relation,’ both of which look like your standard datatable. However, the distinction is that a ‘relation’ consists of data that is definitively associated with each other. In Figure 1.6 from Darwin’s book, the attribute values can be read across the relation like a sentence: “A student named Anne has a student ID of S1 and is registered for Course ID C1.” This sentence is intuitively derived by looking at the ‘relation.’ A ‘table’ on the other hand can be a ‘relation,’ but does not necessarily have any association between the entries, as can be seen in Figure 1.5 from Darwin’s book. A relational database is one that organizes data into a collection of relations.

Databases are maintained by Database Management Systems (DBMS), and relational databases are specifically maintained by Relational Database Management Systems (RDBMS). As a user, we interact with the RDBMS, not the database. The chain of operations involves a command being generated from a application program and the RDBMS responding to the commands. This could involve executions such as alterations to the database (create, destroy, update, or constrain variables) or the supply of queries (results from the database). RDBMSs are typically operated on a server such that multiple concurrent users can be supported.

The power of relational databases becomes evident when behavior is established between the attributes of the database. At the simplest level, RDBMS can be used for storage, retrieval, deletion, security, and integrity of data within a database. This can quickly expand in complexity as numerous relations can be linked together to invoke specific procedures for storing data entries within the database, processing the data, etc.

I know I’m only skimming the surface of relational database theory and its capacity, but I think this gives a general overview of the potential and workings of a relational database.

Citations:

Darwin, Hugh. “An Introduction to Relational Database Theory.” booboon.com.  2010.

<https://dvikan.no/ntnu-studentserver/kompendier/an-introduction-pto-relational-database-theory.pdf>

“Relational Databases 101: Looking at the Whole Picture.”  Agiledata.org.  2018.

<http://www.agiledata.org/essays/relationalDatabases.html>
